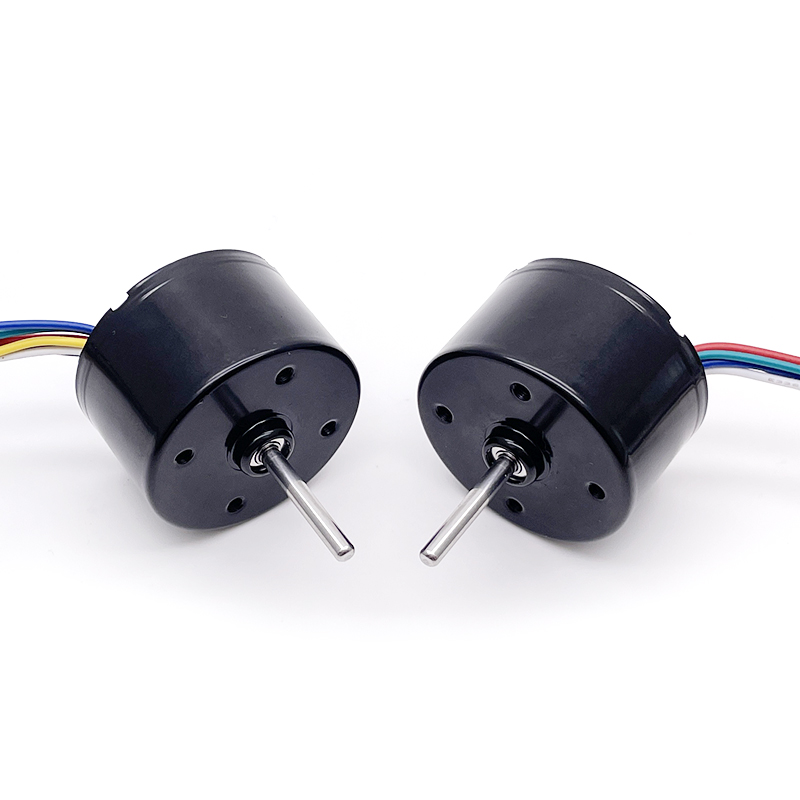

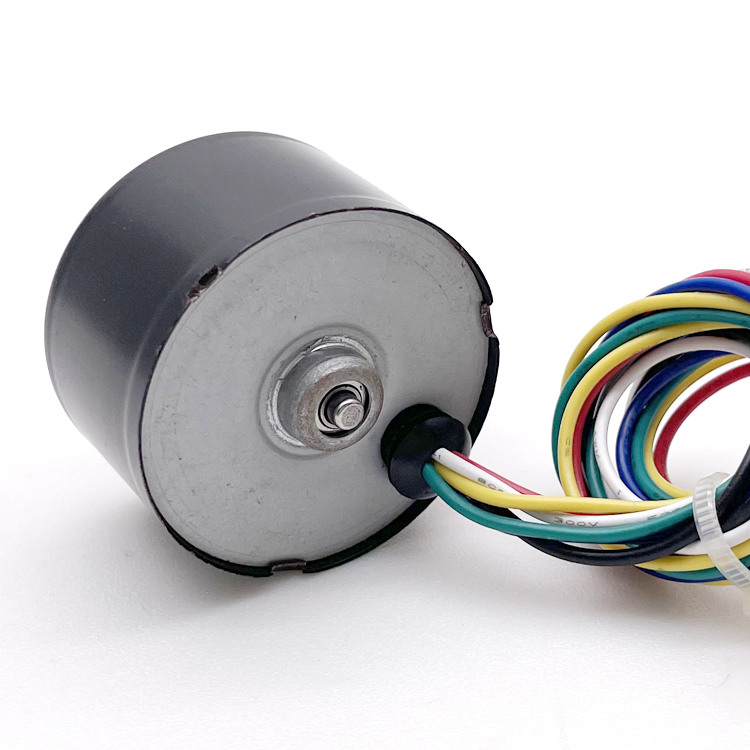

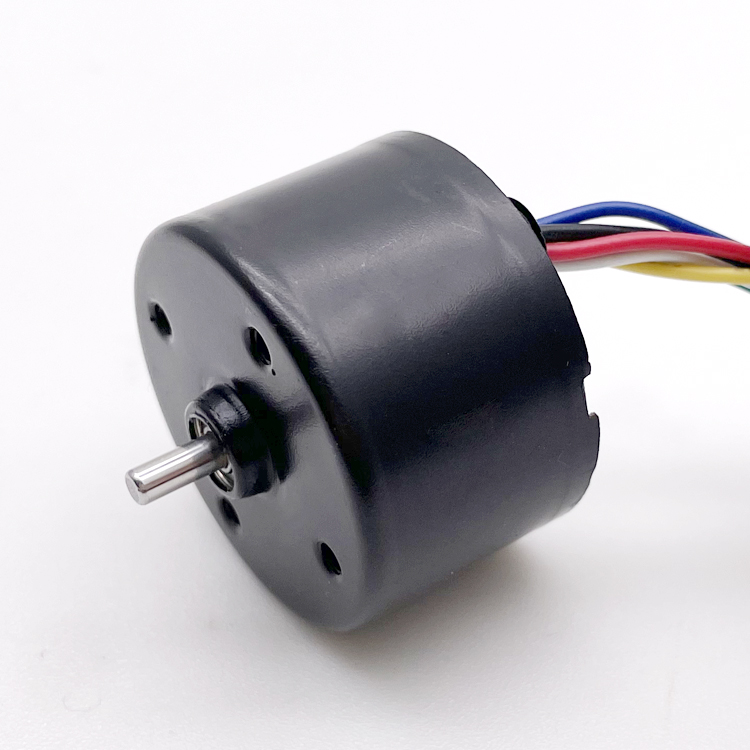

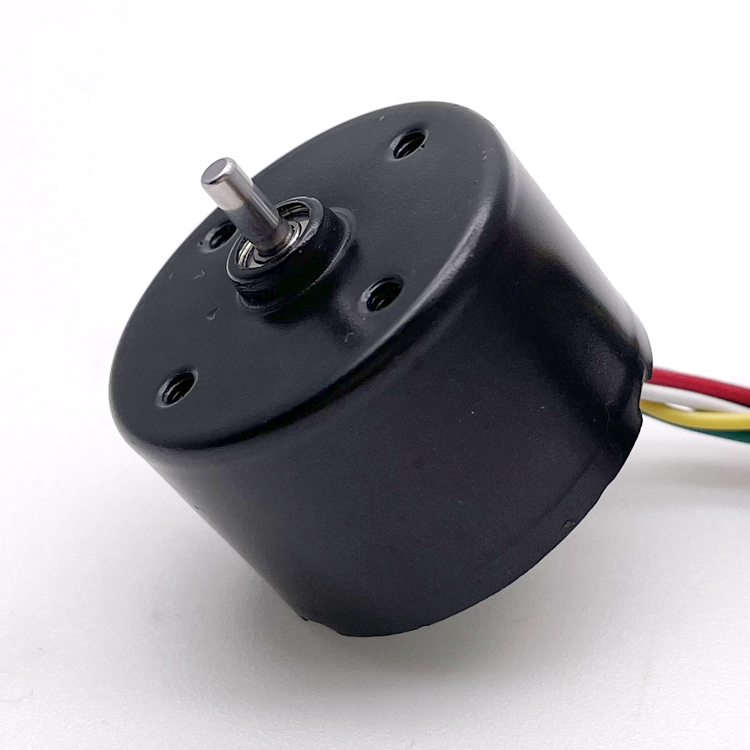

12V 24V BLDC Brushless DC Motor High Quality Efficient Electric Motor
Main Features
- 36mm brushless motor
- Low noise, long life. Built-in drive. Power on, then work
- Reverse rotation and Brake control
- PWM Speed control and FG signal feedback
- Can be available with planetary gearbox

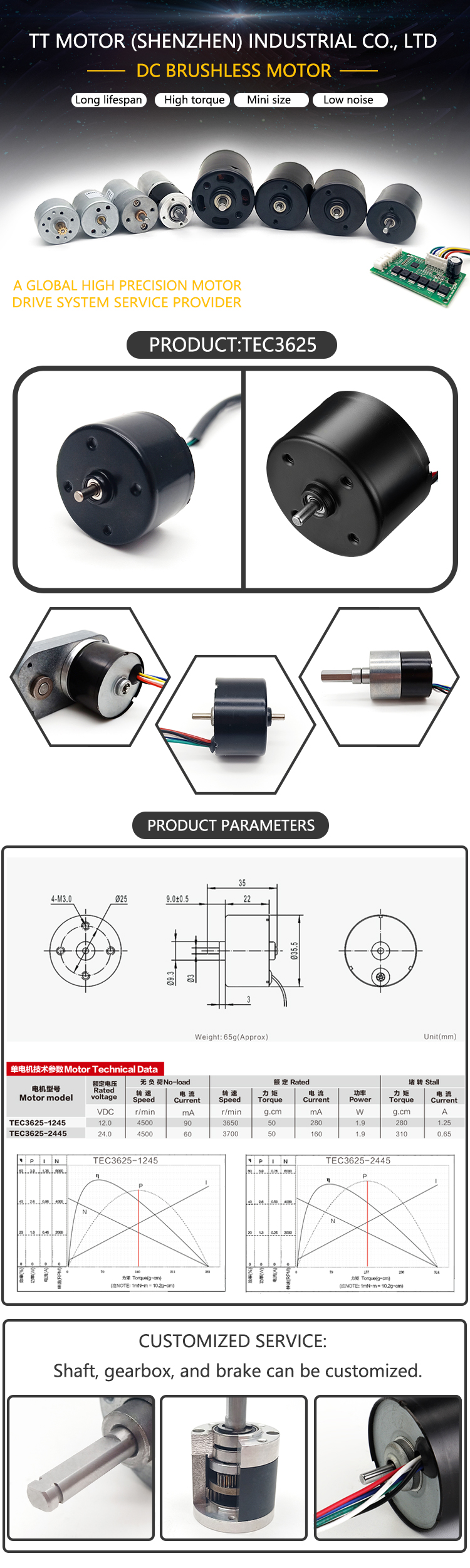

| Model: motor TEC3625 |
| TFC3625-0630 |
Rated voltage: 6VDC |
Rated speed: 2100r/min |
Output power: 2.2W |
| No-load speed: 3000r/min |
Rated torque: 100g.cm |
Stall torque: 340g.cm |
| No-load current: 210mA |
Rated current: 400mA |
Stall current: 1.8A |
| TFC3625-1255 |
Rated voltage: 12VDC |
Rated speed: 4600r/min |
Output power: 4.6W |
| No-load speed: 5500r/min |
Rated torque: 84g.cm |
Stall torque: 140g.cm |
| No-load current: 180mA |
Rated current: 800mA |
Stall current: 1.6A |
| TFC3625-2480 |
Rated voltage: 24VDC |
Rated speed: 5900r/min |
Output power: 16.5W |
| No-load speed: 8000r/min |
Rated torque: 270g.cm |
Stall torque: 680g.cm |
| No-load current: 160mA |
Rated current: 900mA |
Stall current: 2.0A |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
| Others Application |
| Business Machines |
Vending Machines, Printers, ATM, Copiers and Scanners |
| Camera and Optical |
Video, Cameras, Projectors |
| Lawn and Garden |
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Our Company
We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.
Our Customers
NIKE, FLEXTRONICS, STANLEY, etc.
Packing & Delivery
Standard packing
Shipping Time
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days; China Post: Depends on ship to which country; Sea: Depends on ship to which country
Our Customer Feedback
Excellent quality, better price, good service, and on time delivery.
FAQ
How to order?
Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
How about Sample order?
Sample is available for you. Please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Which shipping way is available?
DHL, UPS, FedEx, TNT, EMS, China Post, Sea are available. The other shipping ways are also available, please contact us if you need ship by the other shipping way.
How long is the deliver (producing) and shipping?
Deliver time depends on the quantity you order. Usually it takes 15-25 working days.
My package has missing products. What can I do?
Please contact our support team and we will confirm your order with the package contents. We apologize for any inconveniences.
How to confirm the payment?
We accept payment by T/T, PayPal, the other payment ways also could be accepted. Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
