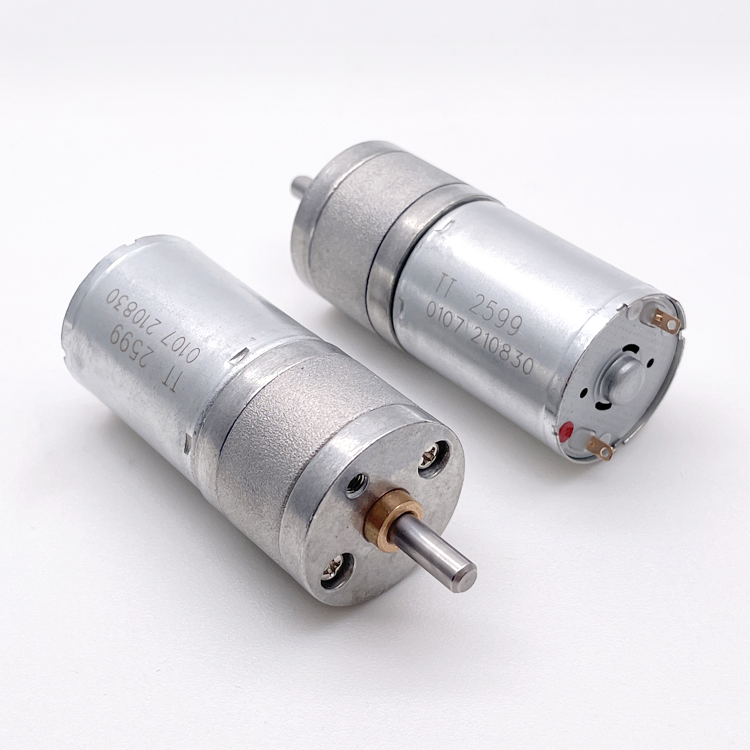

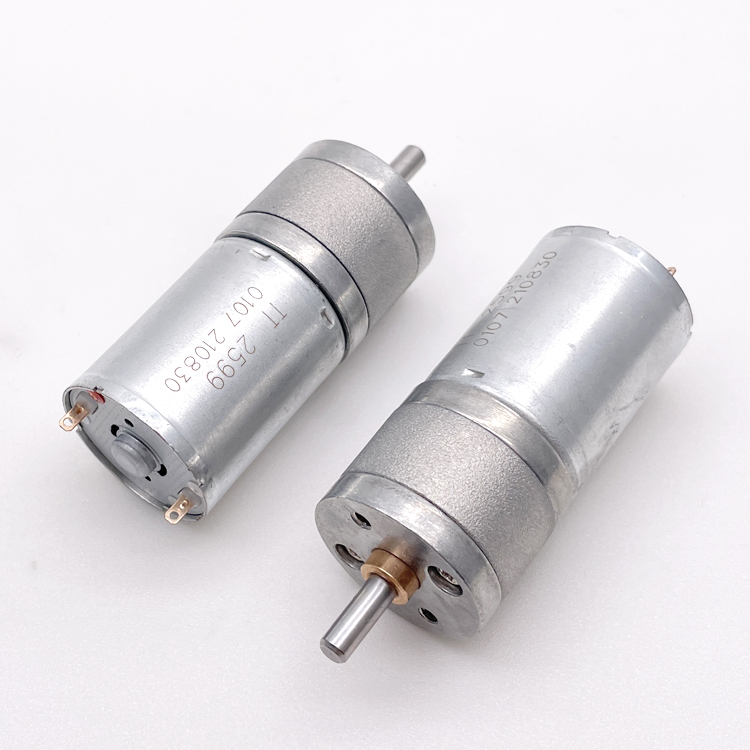

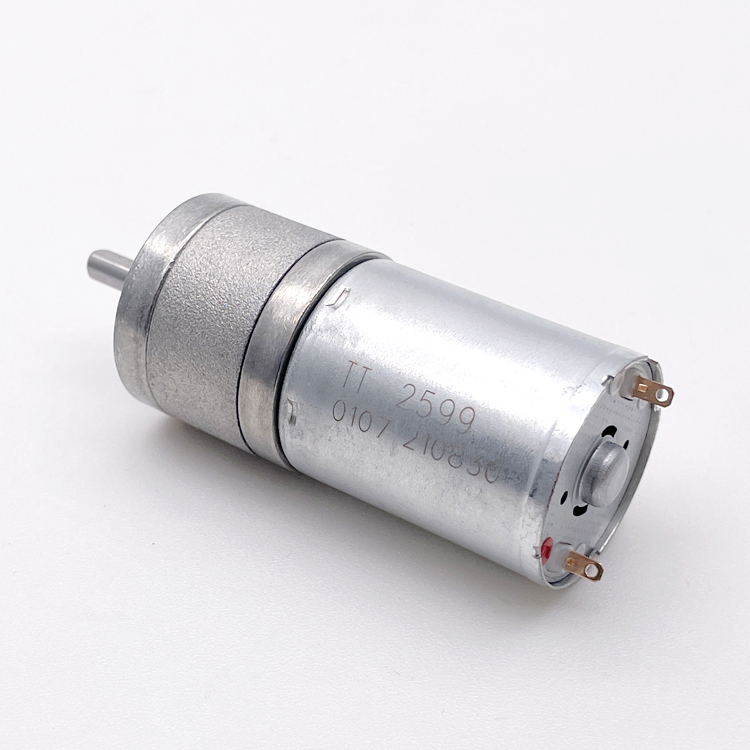

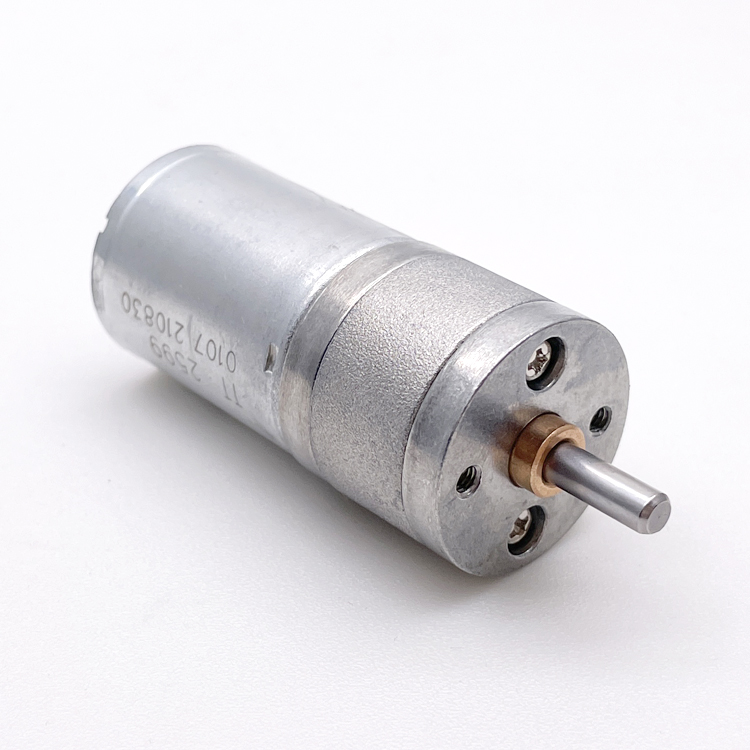

GM25-370CA 12V DC Gear Motor with Encoder for Automatic Toys and Robotics Applications Global B2B Supply

GM25-370CA electric 12v encoder dc gear motor for automatic toys

Product Application

Suitable for a wide range of automated systems and precision control devices, including:

Automatic door operators
Automatic energy saving bath systems
Electrical controlled valves
Oxygen machines & medical equipment
Optical equipment
Automat cordless power tools and lighting systems

Main Features

Premium Combination: 25mm gearbox coupled with 370 & 320 permanent magnet DC motors.
Compact & Powerful: Small-sized DC gear motor delivers low speed combined with high torque.
High Torque Output: Provides up to 0.5Nm torque for more reliable operations.
Ideal Applications: Perfectly suited for small diameter, low noise, and big torque applications.

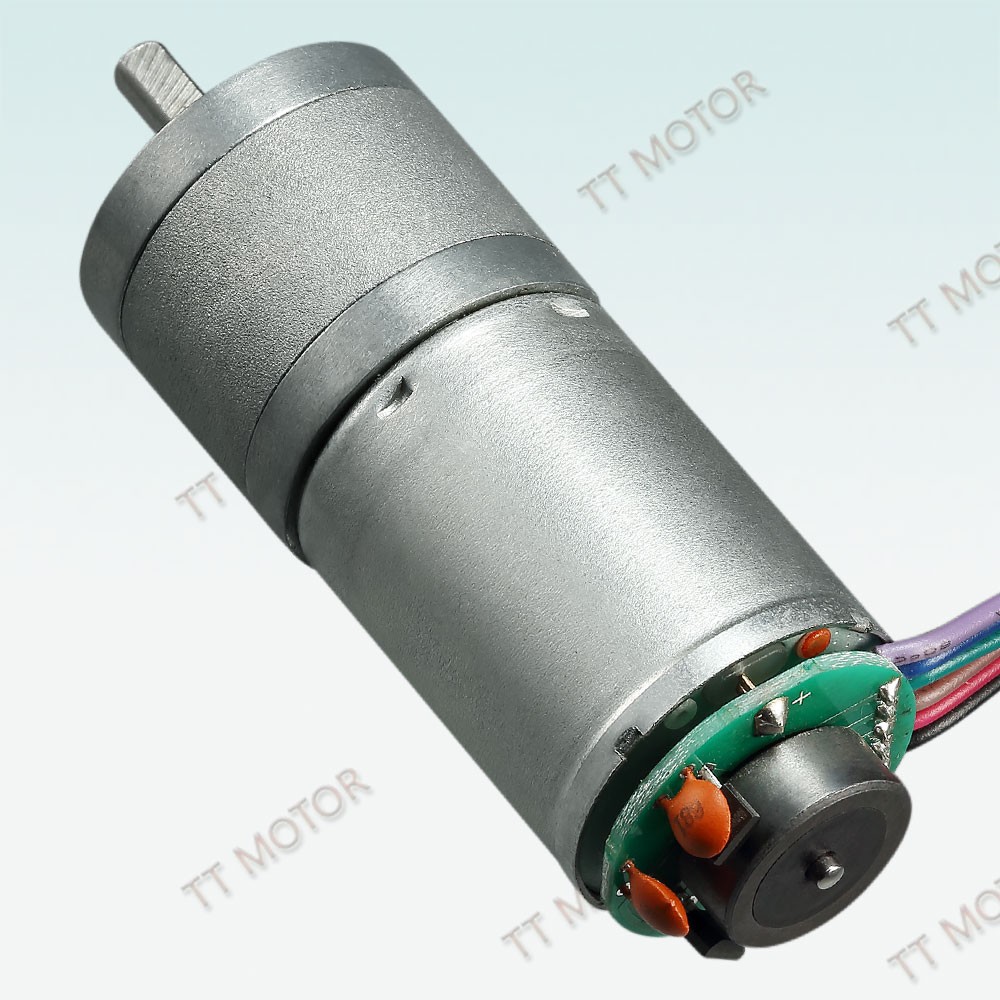

Encoder Compatibility: DC gear motors can be equipped with an 11ppr encoder.
Various Reduction Ratios: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499.

Model Parameters

Model: Motor GM25-370CA
TRK-370CA-22170	Rated voltage: 6VDC	Rated speed: 4800r/min	Output power: 1.18W
	No-load speed: 5600r/min	Rated torque: 24g.cm	Stall torque: 186g.cm
	No-load current: 50mA	Rated current: 300mA	Stall current: 2.1A
TRK-370CA-15360	Rated voltage: 12VDC	Rated speed: 4800r/min	Output power: 1.18W
	No-load speed: 5600r/min	Rated torque: 24g.cm	Stall torque: 186g.cm
	No-load current: 25mA	Rated current: 160mA	Stall current: 1.06A
TRK-370CA-12560	Rated voltage: 12VDC	Rated speed: 3000r/min	Output power: 0.62W
	No-load speed: 3700r/min	Rated torque: 20g.cm	Stall torque: 125g.cm
	No-load current: 20mA	Rated current: 90mA	Stall current: 0.6A

Gearbox Performance Data

Model: GM25-370CA-22170-xxx

Reduction ratio	4	10	21	34	47	78	103	130	227
Length mm	17	19	19	21	21	23	23	25	25
No-load speed rpm	1280	510	245	150	110	68	50	42	24
Rated speed rpm	1200	480	230	137	102	62	47	37	21
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10

Model: GM25-370CA-15360-xxx

Reduction ratio	4	10	21	34	47	78	103	130	227
Length mm	17	19	19	21	21	23	23	25	25
No-load speed rpm	1280	510	245	150	110	68	50	42	24
Rated speed rpm	1200	480	230	137	102	62	47	37	21
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10

Model: GM25-370CA-12560-xxx

Reduction ratio	4	10	21	34	47	78	103	130	478
Length mm	17	19	19	21	21	23	23	25	27
No-load speed rpm	850	340	165	100	75	48	34	27	7.5
Rated speed rpm	750	300	145	86	64	38	29	23	6.3
Rated torque kg.cm	0.05	0.12	0.26	0.4	0.6	0.9	1.2	1.4	2.5
Max. tolerance torque kg.cm	0.3	0.75	1.5	2.6	3.5	10	10	10	10

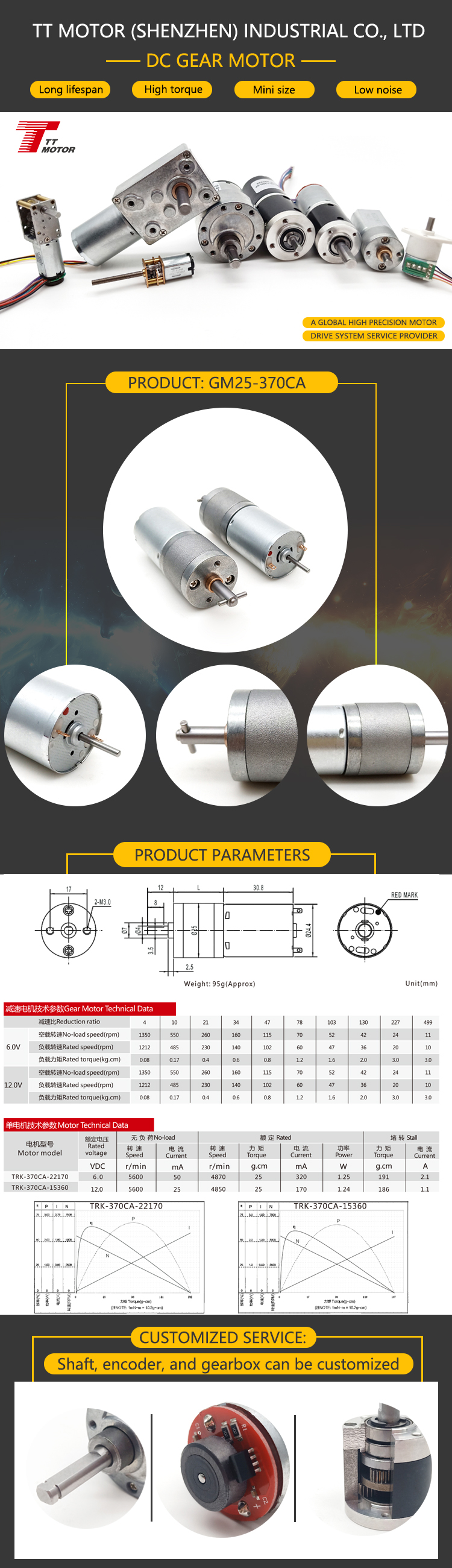

Product Visualization

Packaging & Shipping

GM12-N20VA Packaging details
Case Pack (pcs)	Carton Size	Carton Gross Weight
840	41.5 * 34.5 * 18.5 CM	10.5 kg

Typical Applications

Business & Commercial Machines

ATMs, Copiers, and Scanners
Currency Handling & Point of Sale (POS) terminals
Printers & Vending Machines

Food & Beverage Appliances

Beverage Dispensing systems
Hand Blenders, Mixers, and Coffee Machines
Food Processors, Juicers, Fryers, Ice Makers

Medical & Precision Systems

Urine Analyzers & Blood Sugar Analyzers
Medical Injectors
Projectors & Video/Camera Zoom Controls

Lawn & Garden Equipment

Lawn Mowers & Snow Blowers
Trimmers & Leaf Blowers

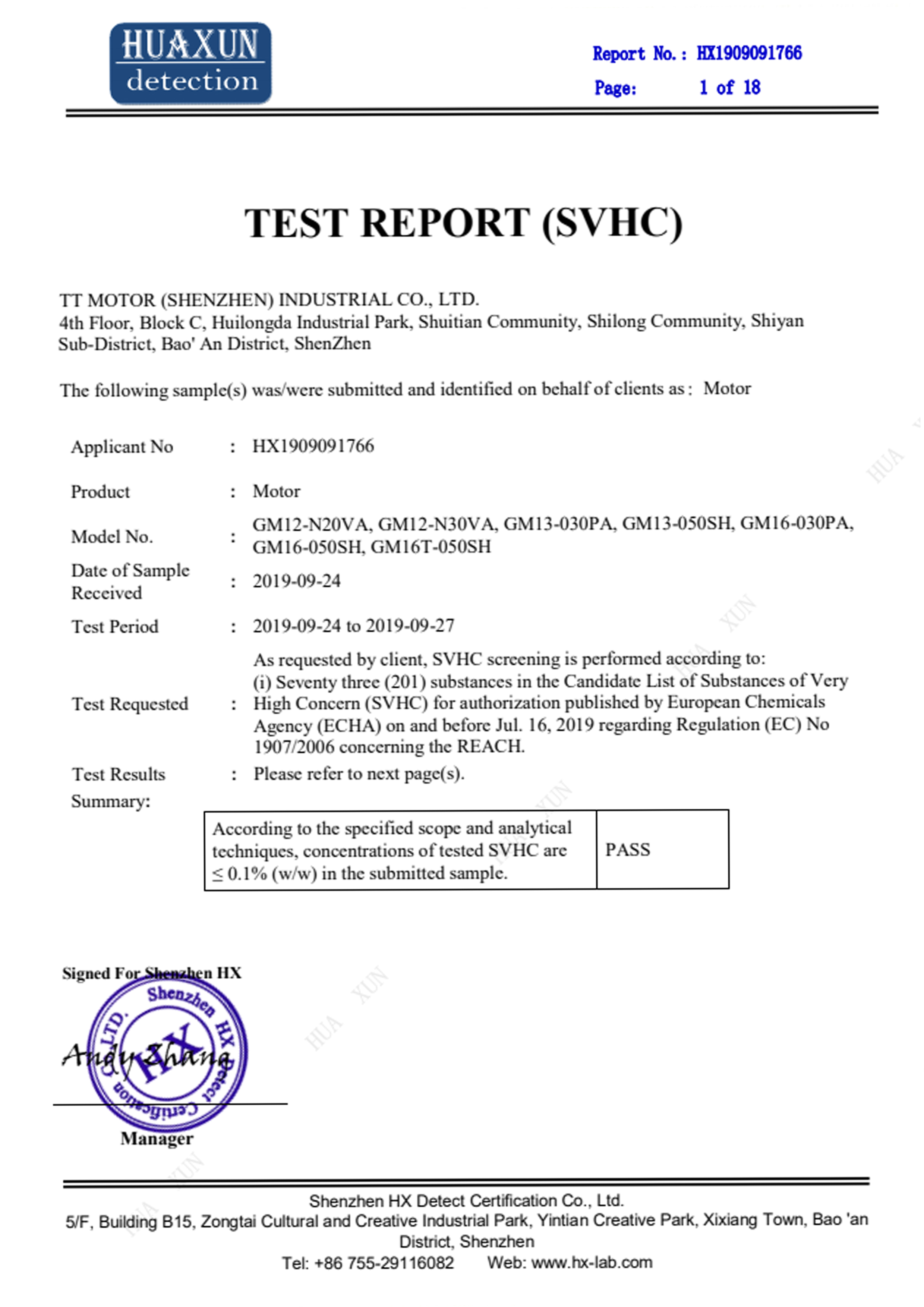

Quality Certifications

Customer Feedback & Relationships

Global Partners

Manufacturing Profile

Specializing in micro motors, gear motors, and their respective precision parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, tools, and many other fields. Designed to be dependable and long-lasting, our output is backed by years of engineering experience, with 98% of total production exported worldwide.

Leveraging a hard-won reputation for honesty, reliability, and quality, we aim to remain a trusted global pioneer. We welcome partnerships with end-users of micro-motors, distributors, and agents worldwide. We look forward to cooperating with you in the near future.

Frequently Asked Questions (FAQ)

What are the primary applications of the GM25-370CA DC gear motor?

The GM25-370CA DC gear motor is widely used in automatic door operators, energy-saving bath devices, electrical controlled valves, oxygen machines, optical instruments, and cordless power tools.

Can this gear motor be configured with an encoder?

Yes, these DC gear motors are compatible with encoders, typically supporting an 11ppr (pulses per revolution) specification.

What voltage options are available for the GM25-370CA motor series?

The motor is standardly available in 6VDC and 12VDC configurations depending on your specific performance requirements.

What range of reduction ratios does this motor series offer?

The series offers a wide variety of reduction ratios, including 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499, and more depending on the configuration.

What torque parameters does this compact motor provide?

The 25mm gearbox coupled with the DC motor provides up to 0.5Nm of torque, making it highly reliable for low-speed, high-torque applications.

What are the standard packaging and weight specifications for these motors?

For standard models like GM12-N20VA, they are packaged with 840 pieces per carton. The standard carton size is 41.5 * 34.5 * 18.5 cm, with a gross weight of approximately 10.5 kg.
