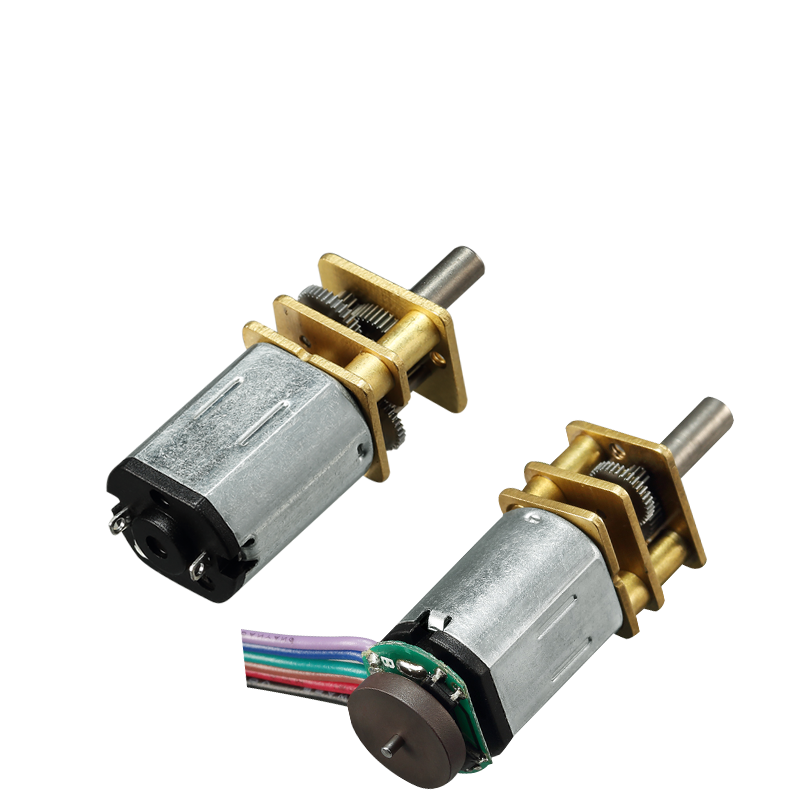

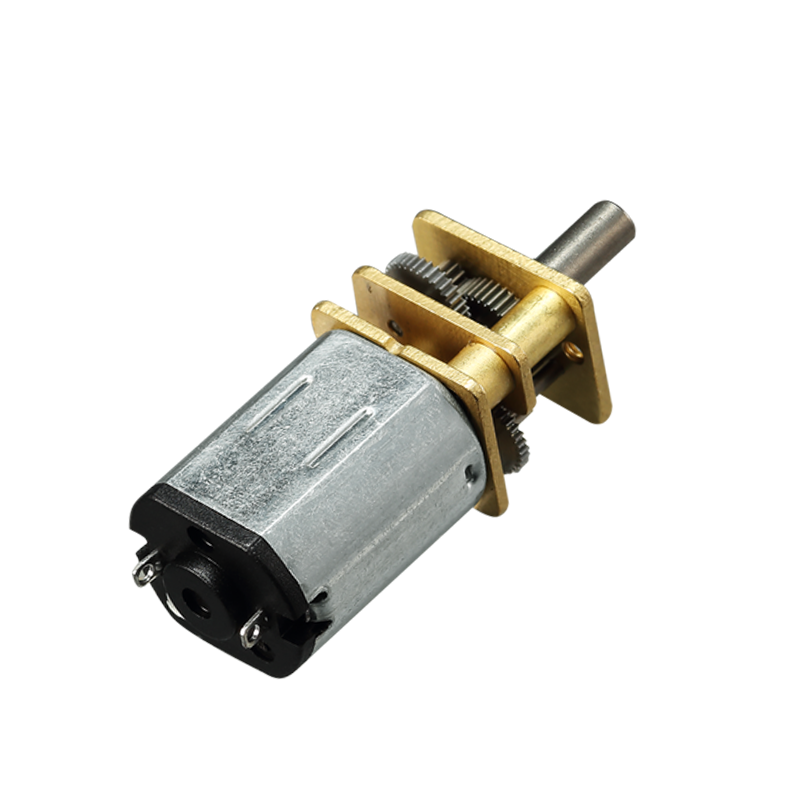

GM12-N20VA DC 6v Mini Metal N20 Gear Motor with Encoder
Main Features
- 12*10 mm gearbox plus N20 & N30 permanent magnet DC motor
- Small size DC gear motor with low speed and big torque
- 12mm gear motor provides 0.1Nm torque and higher reliability
- Suitable for small diameter, low noise, and big torque applications

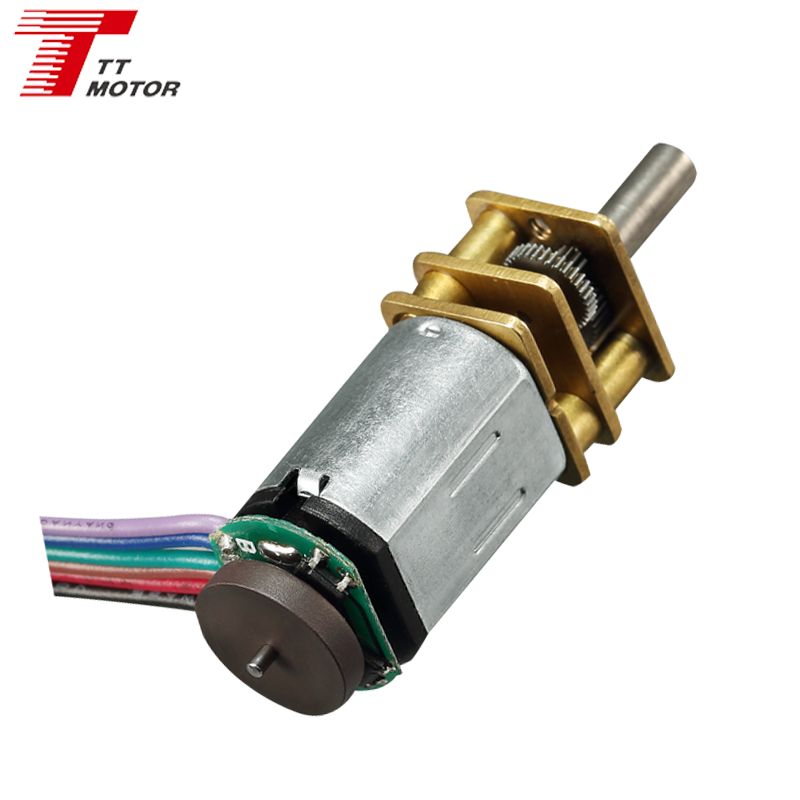

- DC Gear motors can match with encoder, 3ppr
- Reduction ratio options: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000
Motor Specifications
| Model |
Electrical Specification Details |
| TFF-N20VA-13110 |
Rated Voltage: 2.4V DC | Output Power: 0.31W
No-load: 14800r/min, 60mA | Rated: 12000r/min, 2.5g.cm, 200mA | Stall: 13g/cm, 1.20A
|
| TFF-N20VA-09220 |
Rated Voltage: 5V DC | Output Power: 0.31W
No-load: 14800r/min, 30mA | Rated: 12000r/min, 2.5g.cm, 120mA | Stall: 13g/cm, 0.52A
|
| TFF-N20VA-05430 |
Rated Voltage: 12V DC | Output Power: 0.35W
No-load: 16000r/min, 15mA | Rated: 12500r/min, 3.0g.cm, 60mA | Stall: 13g/cm, 0.25A
|
Gearbox Reduction Ratio Parameters
GM12-N20VA-13110-xxx
| Reduction Ratio |
10 |
30 |
50 |
100 |
150 |
210 |
250 |
298 |
380 |
| Length (mm) | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load Speed (rpm) | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated Speed (rpm) | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated Torque (kg.cm) | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. Momentary Tolerance Torque (kg.cm) | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-09220-xxx
| Reduction Ratio |
10 |
30 |
50 |
100 |
150 |
210 |
250 |
298 |
380 |
| Length (mm) | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load Speed (rpm) | 1450 | 470 | 285 | 145 | 96 | 69 | 58 | 50 | 38 |
| Rated Speed (rpm) | 1200 | 400 | 240 | 120 | 80 | 57 | 48 | 40 | 31 |
| Rated Torque (kg.cm) | 0.015 | 0.05 | 0.07 | 0.15 | 0.22 | 0.31 | 0.37 | 0.45 | 0.5 |
| Max. Momentary Tolerance Torque (kg.cm) | 0.08 | 0.23 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
GM12-N20VA-05430-xxx
| Reduction Ratio |
10 |
30 |
50 |
100 |
150 |
210 |
250 |
298 |
380 |
| Length (mm) | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |
| No-load Speed (rpm) | 1550 | 530 | 310 | 160 | 110 | 78 | 60 | 55 | 43 |
| Rated Speed (rpm) | 1100 | 400 | 250 | 125 | 83 | 60 | 50 | 42 | 33 |
| Rated Torque (kg.cm) | 0.02 | 0.05 | 0.08 | 0.18 | 0.27 | 0.37 | 0.45 | 0.5 | 0.5 |
| Max. Momentary Tolerance Torque (kg.cm) | 0.1 | 0.2 | 0.4 | 0.8 | 1.1 | 1.5 | 1.6 | 1.9 | 2.5 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
