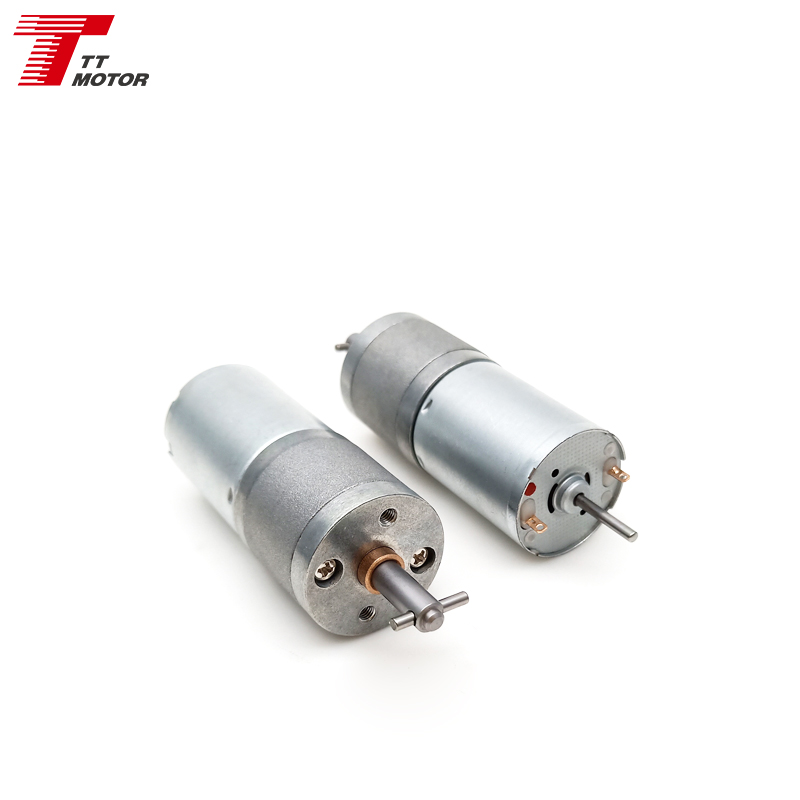

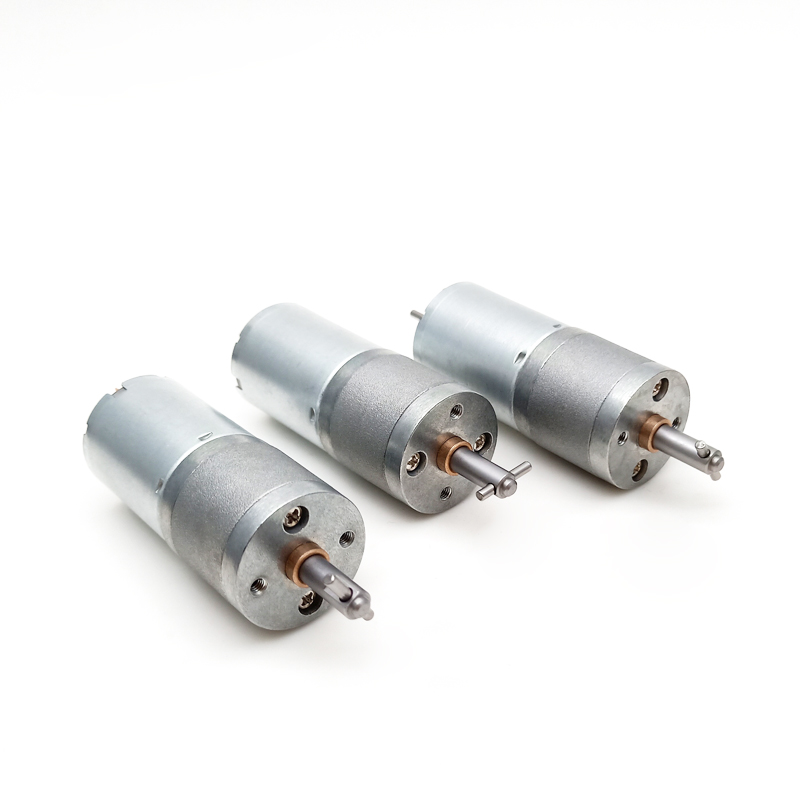

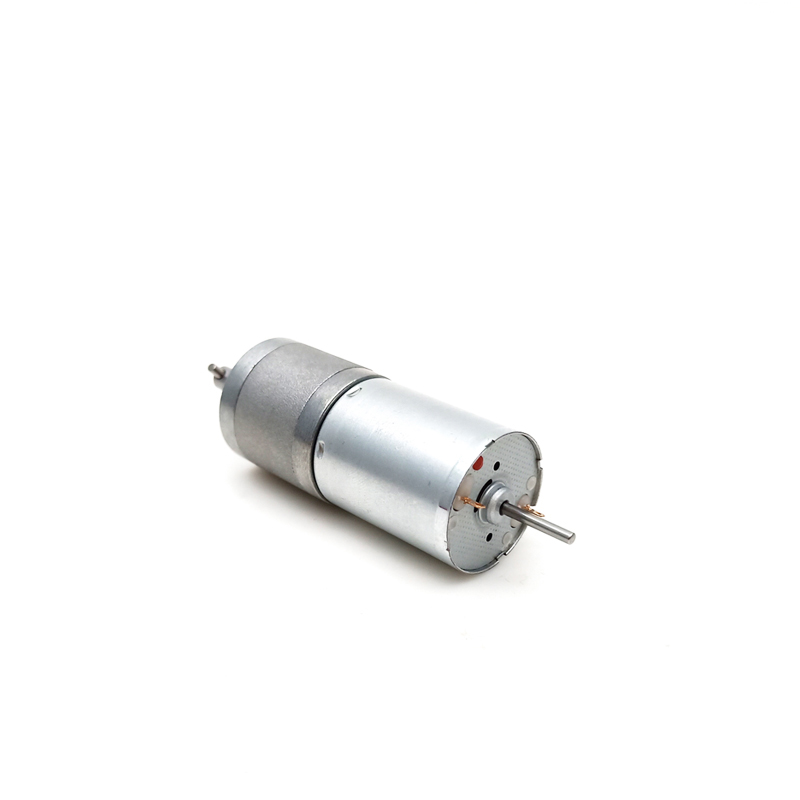

GM25-370CA 6V 12V DC Electric Gear Motor for TV Broadcast Satellite Antenna
Main Features

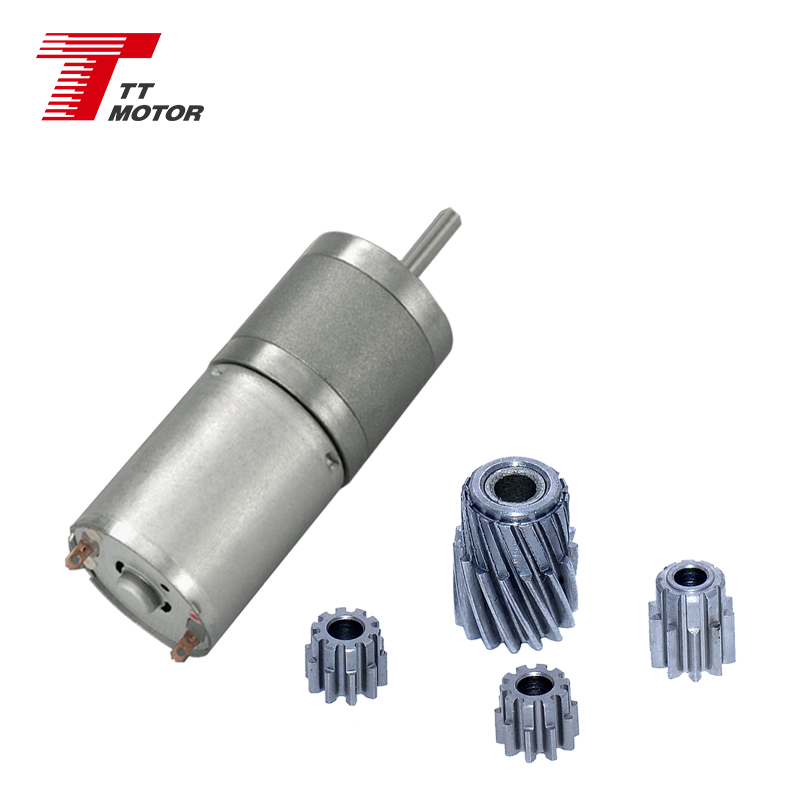

- 25mm gearbox plus 370 & 320 permanent magnet DC motor
- Small size DC gear motor with low speed and big torque
- 25mm gear motor provides 0.5Nm torque and higher reliability
- Suitable for small diameter, low noise, and big torque applications

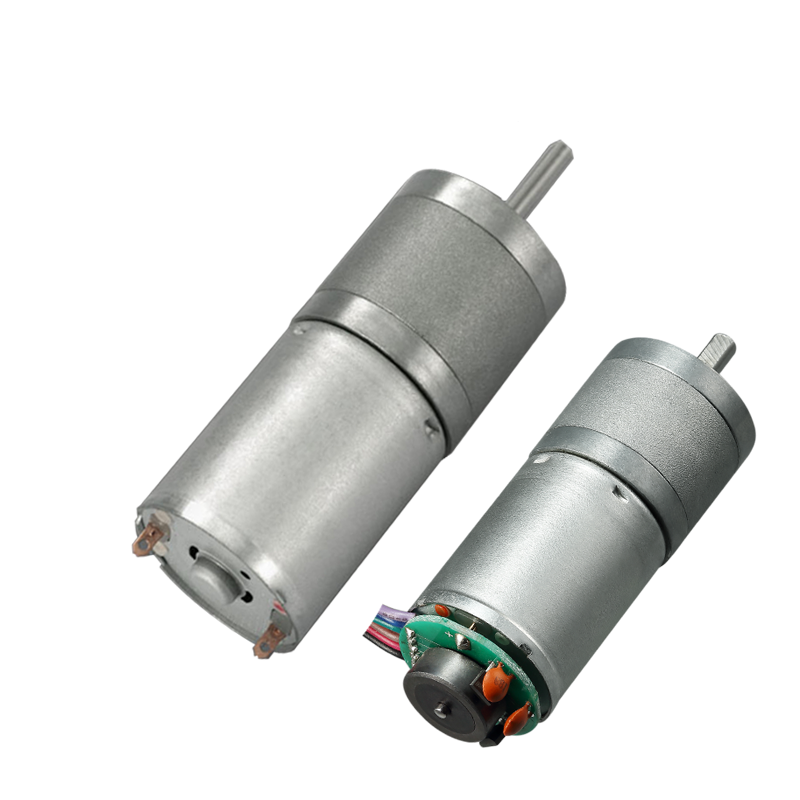

- DC gear motors can match encoder (11ppr)
- Reduction ratio: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499
Model Specifications
| Model: Motor GM25-370CA |
| TRK-370CA-22170 |
Rated voltage: 6VDC |
Rated speed: 4800r/min |
Output power: 1.18W |
| No-load speed: 5600r/min |
Rated torque: 24g.cm |
Stall torque: 186g.cm |
| No-load current: 50mA |
Rated current: 300mA |
Stall current: 2.1A |
| TRK-370CA-15360 |
Rated voltage: 12VDC |
Rated speed: 4800r/min |
Output power: 1.18W |
| No-load speed: 5600r/min |
Rated torque: 24g.cm |
Stall torque: 186g.cm |
| No-load current: 25mA |
Rated current: 160mA |
Stall current: 1.06A |
| TRK-370CA-12560 |
Rated voltage: 12VDC |
Rated speed: 3000r/min |
Output power: 0.62W |
| No-load speed: 3700r/min |
Rated torque: 20g.cm |
Stall torque: 125g.cm |
| No-load current: 20mA |
Rated current: 90mA |
Stall current: 0.6A |

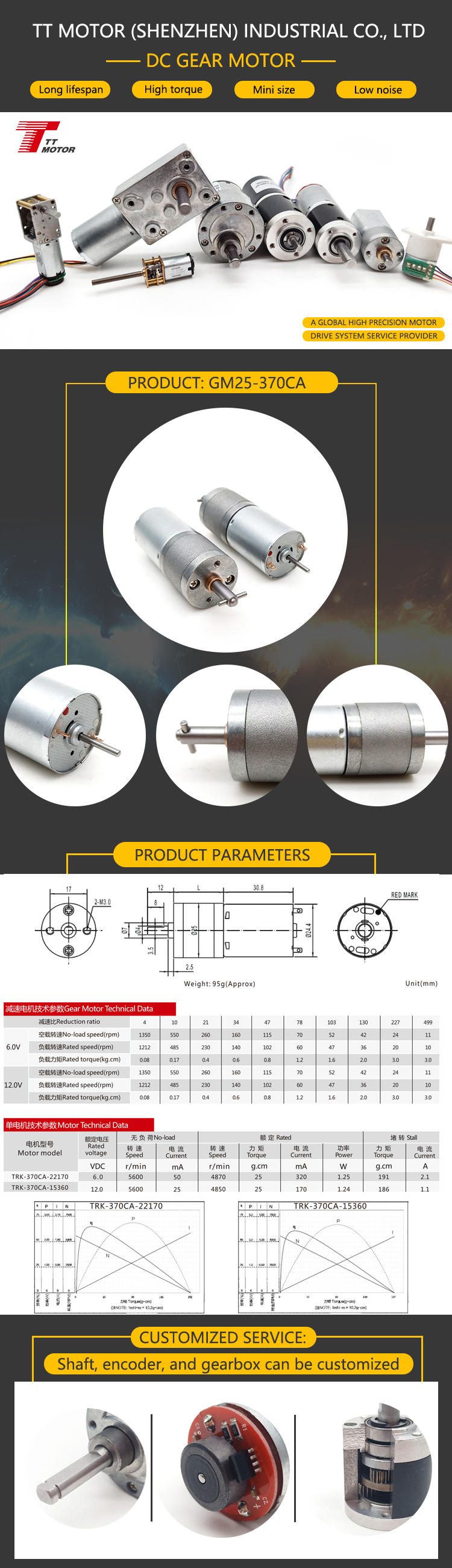

GM25-370CA-22170-xxx Performance Parameters
| Reduction ratio |
4 |
10 |
21 |
34 |
47 |
78 |
103 |
130 |
227 |
| Length (mm) |
17 |
19 |
19 |
21 |
21 |
23 |
23 |
25 |
25 |
| No-load speed (rpm) |
1280 |
510 |
245 |
150 |
110 |
68 |
50 |
42 |
24 |
| Rated speed (rpm) |
1200 |
480 |
230 |
137 |
102 |
62 |
47 |
37 |
21 |
| Rated torque (kg.cm) |
0.06 |
0.15 |
0.3 |
0.5 |
0.7 |
1.1 |
1.5 |
1.7 |
2.7 |
| Max. tolerance torque (kg.cm) |
0.45 |
1.1 |
2.3 |
3.9 |
5.2 |
10 |
10 |
10 |
10 |
GM25-370CA-15360-xxx Performance Parameters
| Reduction ratio |
4 |
10 |
21 |
34 |
47 |
78 |
103 |
130 |
227 |
| Length (mm) |
17 |
19 |
19 |
21 |
21 |
23 |
23 |
25 |
25 |
| No-load speed (rpm) |
1280 |
510 |
245 |
150 |
110 |
68 |
50 |
42 |
24 |
| Rated speed (rpm) |
1200 |
480 |
230 |
137 |
102 |
62 |
47 |
37 |
21 |
| Rated torque (kg.cm) |
0.06 |
0.15 |
0.3 |
0.5 |
0.7 |
1.1 |
1.5 |
1.7 |
2.7 |
| Max. tolerance torque (kg.cm) |
0.45 |
1.1 |
2.3 |
3.9 |
5.2 |
10 |
10 |
10 |
10 |
GM25-370CA-12560-xxx Performance Parameters
| Reduction ratio |
4 |
10 |
21 |
34 |
47 |
78 |
103 |
130 |
478 |
| Length (mm) |
17 |
19 |
19 |
21 |
21 |
23 |
23 |
25 |
27 |
| No-load speed (rpm) |
850 |
340 |
165 |
100 |
75 |
48 |
34 |
27 |
7.5 |
| Rated speed (rpm) |
750 |
300 |
145 |
86 |
64 |
38 |
29 |
23 |
6.3 |
| Rated torque (kg.cm) |
0.05 |
0.12 |
0.26 |
0.4 |
0.6 |
0.9 |
1.2 |
1.4 |
2.5 |
| Max. tolerance torque (kg.cm) |
0.3 |
0.75 |
1.5 |
2.6 |
3.5 |
10 |
10 |
10 |
10 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
| Category |
Applications |
| Business Machines |
Vending Machines |
Printers |
ATM |
Copiers and Scanners |
| Camera and Optical |
Video |
Cameras |
Projectors |
- |
| Lawn and Garden |
Lawn Mowers |
Snow Blowers |
Trimmers |
Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
About Our Micro Motors
Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, tools and many others. Our products are dependable and long-lasting, backed by years of experience. Approximately 98% of the output is exported worldwide.
Major Clients
NIKE, FLEXTRONICS, STANLEY, etc.
Packing & Delivery
Standard export packaging to ensure the products remain undamaged during transit.
Shipping Lead Time
- DHL: 3-5 working days
- UPS: 5-7 working days
- TNT: 5-7 working days
- FedEx: 7-9 working days
- EMS: 12-15 working days
- China Post: Depends on destination country
- Sea Freight: Depends on destination port
Customer Feedback
"Excellent quality, better price, good service, and on-time delivery."
Frequently Asked Questions
How can I place an order for the gear motors?
The general ordering process involves: sending an inquiry → receiving our quotation → negotiating order details → confirming the sample → signing the contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Are sample orders accepted?
Yes, samples are available for evaluation. Once the sample fee is charged, please note that it will be fully refunded when you place the formal mass production order.
Which shipping methods are available?
We support multiple shipping channels including DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Other shipping methods can also be coordinated upon request.
How long does the production and delivery process take?
Delivery and production times depend on the specific quantity you order. Generally, it takes 15 to 25 working days.
What should I do if my package has missing products?
Please reach out to the support team immediately. We will confirm your order details and verify the contents of the package to resolve the issue as quickly as possible.
What are the accepted payment methods and terms?
We accept payments via T/T and PayPal, along with other standard transaction methods. Our standard terms require a 30-50% deposit upfront, with the remaining balance paid prior to shipping.
