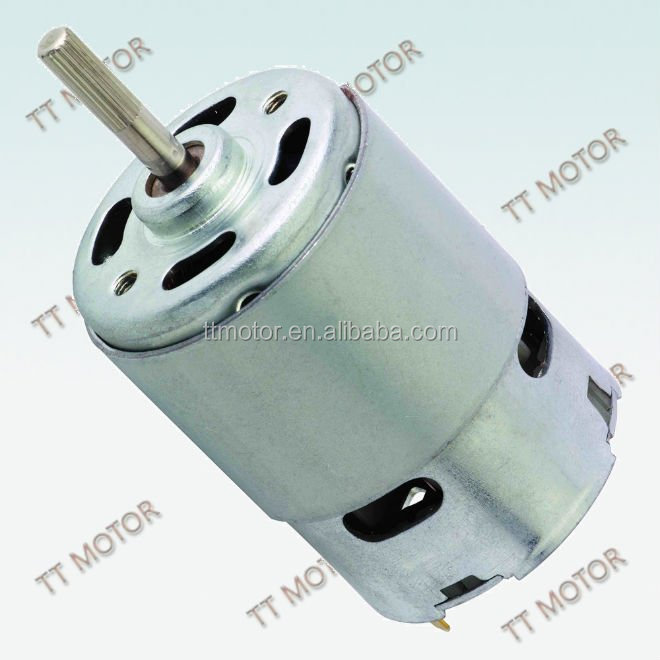

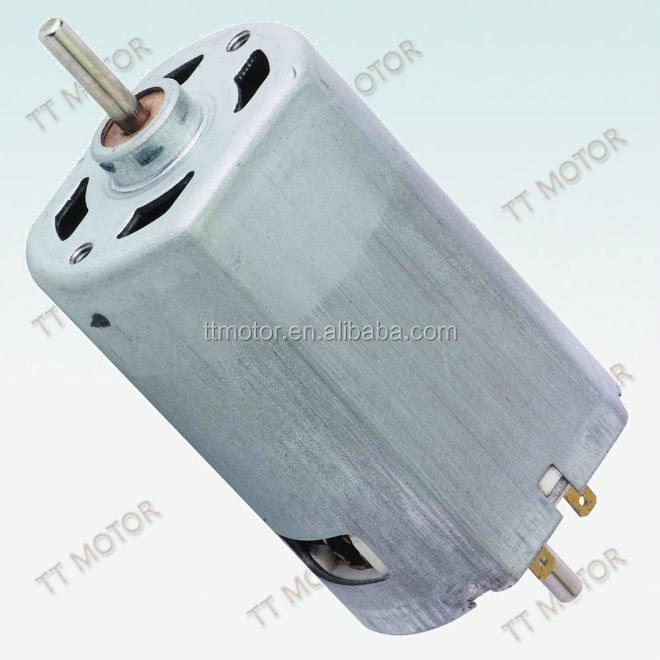

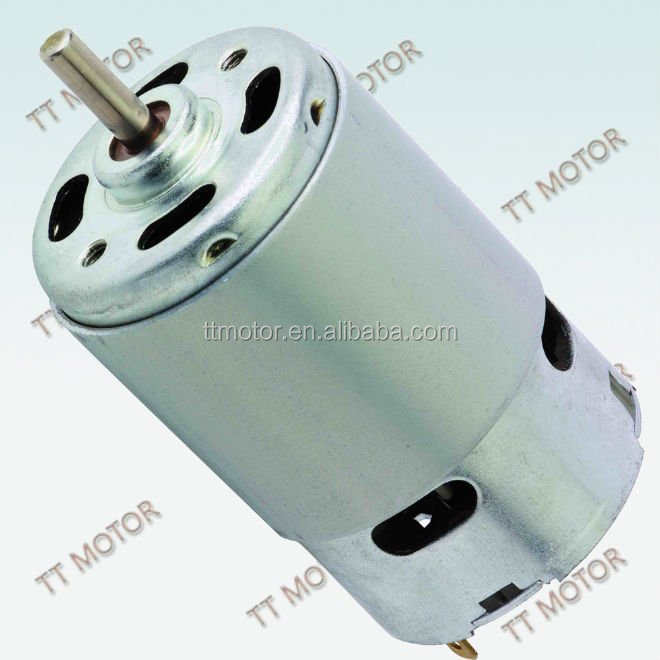

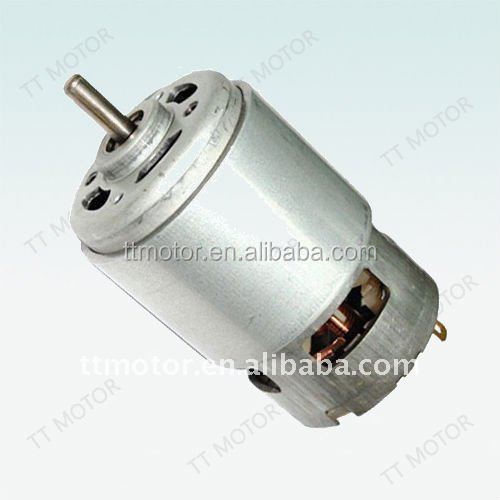

TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
1 / 5
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor

TRS-550PM or 24v Dc Motor

Send Inquiry

Product Description

Product Features & Specifications
Voltage
120V
Speed
18000 RPM
Torque
3512g.cm
Characteristics
Low current, noise, no spark, no vibration
Typical Applications
Ride-on Toy, Grass trimmer, Air Compressor, Drill
Technical Performance Data
MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mN.m g.cm W mN.m g.cm A
TRS-550PM 35100 3.0-18.0 12.0 5200 0.25 4330 1.60 29.41 300 13.3 176.47 1800 8.32
6530 6.0-12.0 12.0 18000 1.30 16100 7.15 41.18 420 69.0 344.31 3512 52.0

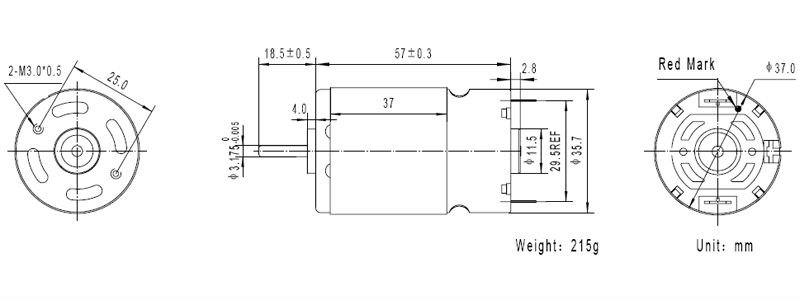

Product Visuals
TRS-550PM or 24v Dc Motor
Frequently Asked Questions
What is the typical operating voltage for the TRS-550PM DC Motor?
The TRS-550PM motor operates within a flexible range depending on the specific configuration. Model 35100 operates between 3.0V and 18.0V, while model 6530 runs between 6.0V and 12.0V, both featuring a nominal voltage of 12.0V.
What maximum speed can the TRS-550PM motor reach?
Under no-load conditions, the TRS-550PM (6530 variant) is capable of reaching a high speed of up to 18,000 RPM at its nominal 12.0V operating level.
What are the primary applications of this DC motor?
The TRS-550PM motor is highly versatile and commonly applied in power drills, ride-on toys, grass trimmers, and portable air compressors.
Does the motor generate high levels of noise or vibration?
No. The TRS-550PM is engineered to deliver stable performance with low current draw, minimum noise levels, no spark emission, and low vibration.
What is the stall torque rating of the TRS-550PM motor?
For the high-speed 6530 variant, the motor provides a maximum stall torque of 3512 g.cm (344.31 mN.m) at a stall current of 52.0A.
